Fukuda RLR100plus Rotary Detector

Fukuda Lasers have listened to feedback from customers and have developed a new detector, model RLR100plus with added features & improvements for the Professional Tradesperson, which is easy-to-use and very accurate. It is ideal for use with most brands of rotating, RED beam laser level.

This Detector is a highly versatile, well-engineered laser receiver for both basic and advanced levelling and aligning applications; designed for general, concrete and site preparation contractors. Strong magnets give added convenience when installing steels and metal structures.

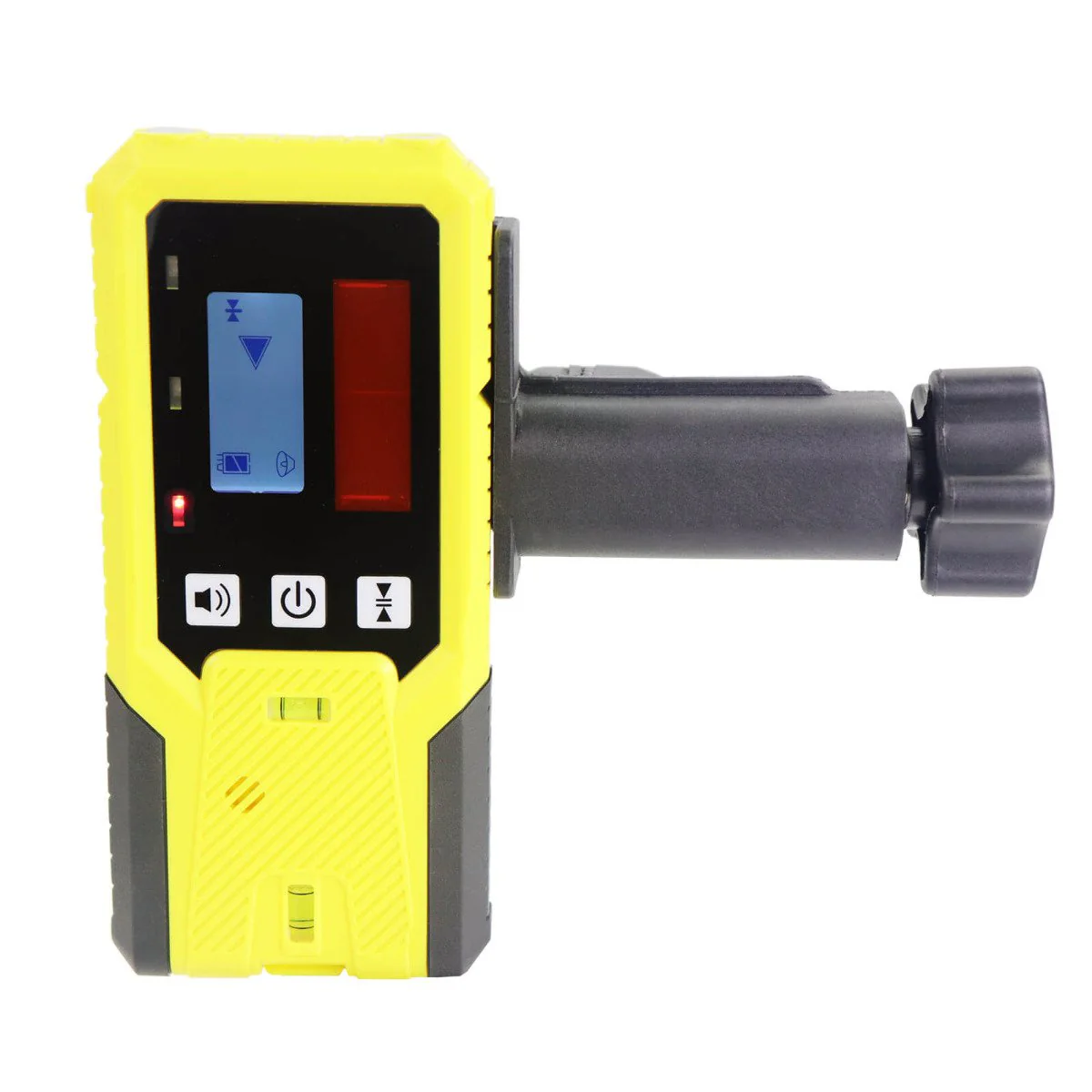

A responsive 43mm long red pick-up window allows quick detection of the laser beam. Readings are shown in three ways: via a front LCD, coloured LED indication and by audible sound, selectable loud/normal or Off. It is specifically compatible with the following Fukuda Red beam laser models:

FRE-102AR, FRE-201, FRE-203XR, FRE-203XT, FRE-205, FRE-207, FRE-208, FRE-211 and FRE-301R; designed to extend the range of these lasers to 500m diameter.

It also suits ALL BRANDS & models of visible red beam Rotary lasers spinning at 600+ rpm.

(Note: This Detector is NOT suitable for green beam Rotarys or any Cross Line laser)

Features

43mm reception window picks up the beam quickly and makes it easy to stay in range. LCD screen on front face.

Simultaneous elevation LED's signal in low light levels and over longer distances for easier reading in poor light conditions. A switchable back-light is included.

Deadband sensitivity settings - two in all, allows adaptation to meet all your job site requirements.

Dust and weatherproof housing to IP55.

Top mounted magnet & bubble levels.

Continuous usage, 40 hours battery life with auto switch off facility.

Specification

Detecting Sensitivity: fine & course settings +/- 1.5mm & +/-2.5mm

Display: Front LCD, back-lit

Audible pitch warning. (selectable On, loud/normal & Off)

Power supply: 4 x type AAA alkaline batteries

Operating time: approx 40 hours continuous, at 20 deg C.

Low battery warning via LCD.

Power Conservation: 10 minutes auto cut-off.

Working temperature: -10 to +45 deg C.

Dimensions: 20 x 75 x 165mm

Weight: 210 grams with batteries (no bracket)

Technical specification

Suits the following FUKUDA family of laser levels:

FRE-202 red beam

FRE-205 red beam

FRE-211 red beam

FRE-301 red beam

FRE-203X red beam

FRE-203XR red beam

FRE-203XT red beam

Example Usage

Setting and checking jobsite elevation and depth for -

Cut and fills

General grading

Foundations

Forms and footings

Excavations

Comprises of

Fukuda RLR100plus Detector

Set of 4 x type AAA alkaline batteries

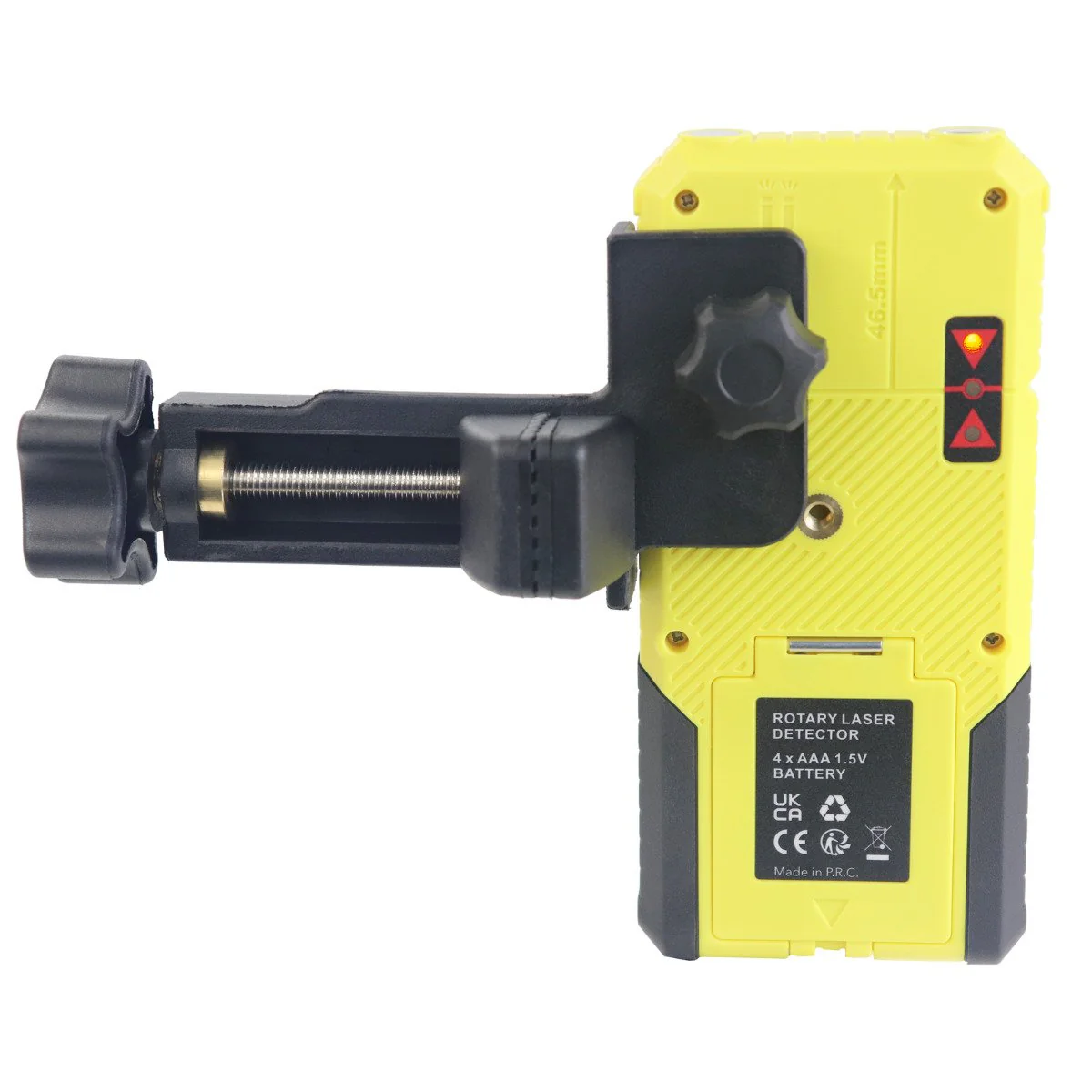

FMB-02 Staff Mounting Bracket

Fukuda 1 Year Warranty
